Providing Table Designs

To highlight specific values in a table column, users can highlight the table cells using colors and symbols. However, the table design, which defines the background color for the grand totals and the subtotals, for example, cannot be changed by users by default. To enable users to change the table design, you can provide your own table designs.

For a table view, users can select a table design in the Designer.

Table Design Selection
Figure 1. Selecting the table design in the Designer

The settings for a table design are also taken into account when exporting to Excel. If no custom table designs are configured, the default Cadenza-internal table design is automatically used for the table display and Excel export.

Requirements

Adjusting the Configuration

You can use a table design to format the following properties in table view:

  • Background color for grand totals (default is white)

  • Background color for subtotals (default is white)

  • Highlighting of border lines: all or only specific (default)

To provide table desings, the workbooktable settings must be configured according to the following example:

  • XML

  • YAML

  • Environment Variables

workbooktable-config.xml configuration file
<workbookTableConfiguration>
    <tableStyles>
        <tableStyle id="green">
            <printName>Green Design</printName>
            <grandTotal>
                <backgroundColor>#57af64</backgroundColor>
            </grandTotal>
            <columnSubtotal>
                <backgroundColor>#9dd394</backgroundColor>
            </columnSubtotal>
            <rowSubtotal>
                <backgroundColor>#d5edcd</backgroundColor>
            </rowSubtotal>
            <borders>SPECIFIC</borders>
        </tableStyle>
        <tableStyle id="blue">
            <printName>Blue Design</printName>
            <grandTotal>
                <backgroundColor>#386eb5</backgroundColor>
            </grandTotal>
            <columnSubtotal>
                <backgroundColor>#7bb0d6</backgroundColor>
            </columnSubtotal>
            <rowSubtotal>
                <backgroundColor>#c6d9ed</backgroundColor>
            </rowSubtotal>
            <borders>SPECIFIC</borders>
        </tableStyle>
        <tableStyle id="bluewithborders">
            <printName>Blue Design (all borders)</printName>
            <grandTotal>
                <backgroundColor>#386eb5</backgroundColor>
            </grandTotal>
            <columnSubtotal>
                <backgroundColor>#7bb0d6</backgroundColor>
            </columnSubtotal>
            <rowSubtotal>
                <backgroundColor>#c6d9ed</backgroundColor>
            </rowSubtotal>
            <borders>ALL</borders>
        </tableStyle>
    </tableStyles>
</workbookTableConfiguration>
myConfig.yaml
cadenzaconfig:
  ...
    workbooktable:
      tableStyles:
      - printName: Green Design
        grandTotal:
          backgroundColor: #57af64
        columnSubtotal:
          backgroundColor: #9dd394
        rowSubtotal:
          backgroundColor: #d5edcd
        borders: SPECIFIC
        id: green
      - printName: Blue Design
        grandTotal:
          backgroundColor: #386eb5
        columnSubtotal:
          backgroundColor: #7bb0d6
        rowSubtotal:
          backgroundColor: #c6d9ed
        borders: SPECIFIC
        id: blue
      - printName: Blue Design (all borders)
        grandTotal:
          backgroundColor: #386eb5
        columnSubtotal:
          backgroundColor: #7bb0d6
        rowSubtotal:
          backgroundColor: #c6d9ed<
        borders: ALL
        id: bluewithborders
  ...

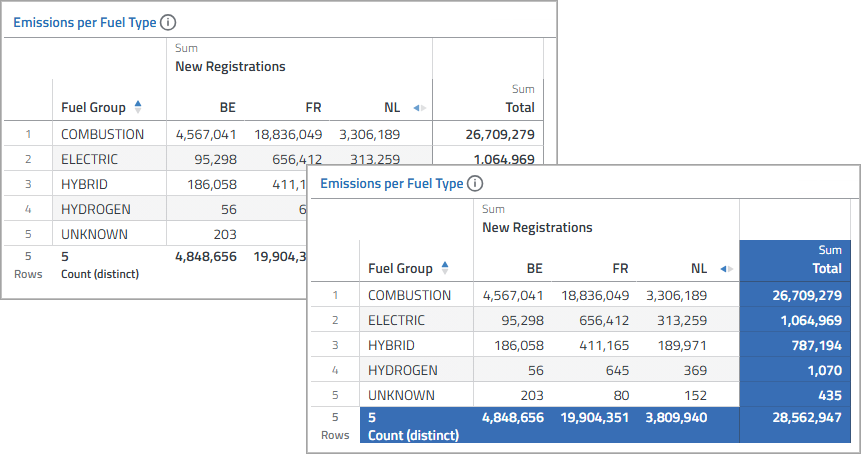

Table Design Blue
Figure 2. Table with default table design (left), table with custom table design (right)
